Product Description
Overview

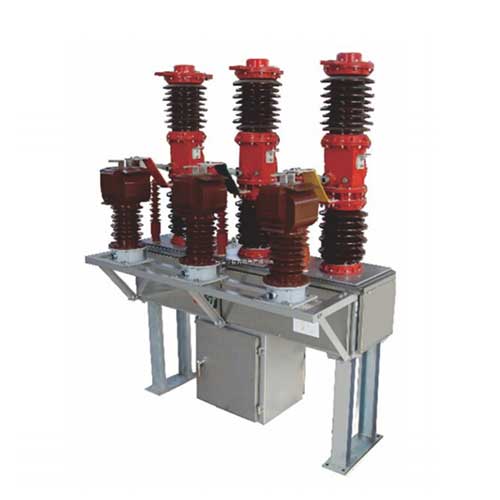

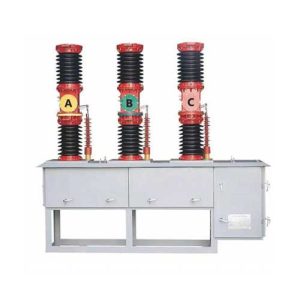

ZW7-36 series Outdoor High-volt Vacuum Circuit Breaker,athree-phase AC 50Hz outdoor high volt switchgear,isapplicable for the 36 KV power distribution and transmissionsystem to close or open the load current,over-load current,short-circuit current and so on.
Service and Installation Conditions
● Ambient temperature:from-30 to 40(from-40 to+40 for the particular order).
● Height above sea level:≤1000m(Value over 1000m should be indicated in advance.)
● Air humidity:relative humidity:≤95%daily at average ≤90%monthly at average
●Wind pressure:≤700Mpa.
● Sunshine intensity:0.1 W/cm under the 0/5m/s wind velocity
● Maximum temperature difference daily allowed:25
● Earthquake intensity:≤8 degree
Main Parameters
| tem | Unit | Specification | |
| Rated voltage | kV | 36 | |
| Rated insulating level |
Lightning impulse withstand voltage(1.2/50μs) | kV | 215/200 |
| Power frequency withstand voltage(1min) | kV | 118/95 | |
| Rated current | A | 1600/2000 | |
| Rated short circuit withstand/breaking current | kA | 20/25/31.5 | |
| Rated operating sequence | 0-0.3s-CO-180s-CO | ||
| Breaking times of the rated short circuit withstand/breaking current | Times | 20 | |
| Rated short-circuit making current | kA | 50/60/80 | |
| Rated short circuit switching current | kA | 50/60/80 | |
| Mechanical life | Times | 10000 | |
| Rated vltage of auxiliary circuit | V | DC220/110 | |
| Rated operating voltage | AC220 | ||
| Open distance of the contact | mm | 22±2 | |
| Super travel of the contact | mm | 4±1 | |
| Average opening speed | m/s | 1.4~1.8 | |
| Average closing speed | m/s | 0.4~0.9 | |
| Bounce time of the closing of the contact | m/s | 3 | |
| Synchronism of the opening of the three phases | ms | 2 | |
| Closing time | ms | 75(spring mechanism) | |
| Opening time | ms | 60 | |
