Turnbuckle

Product Overview

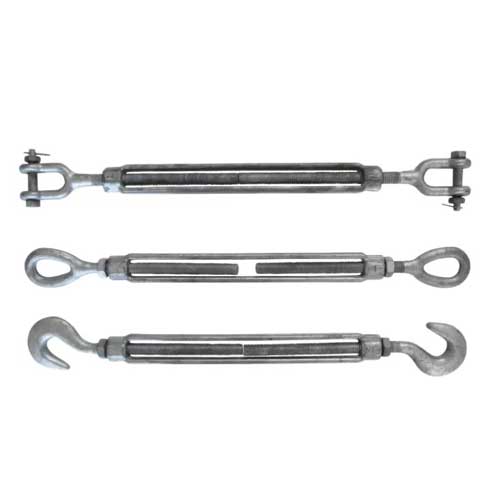

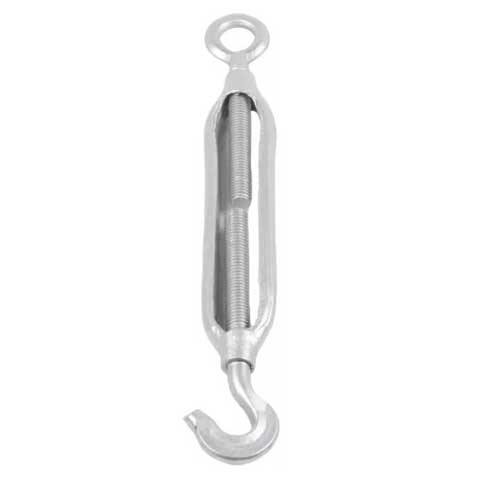

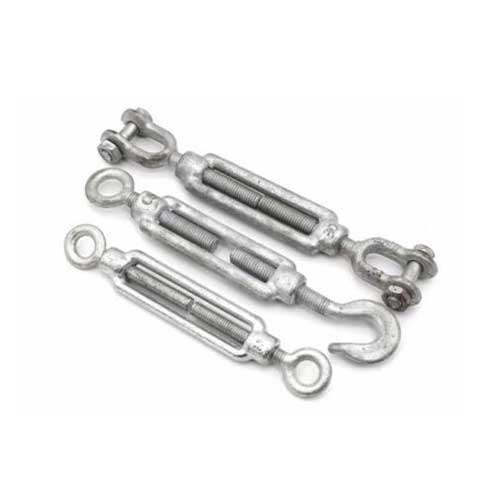

A Turnbuckle is a mechanical device used to adjust tension or displacement in a structure or system. It consists of an adjusting rod, a nut, and pull rods with left and right threads, designed to tighten or loosen connections as needed.

Structural Features

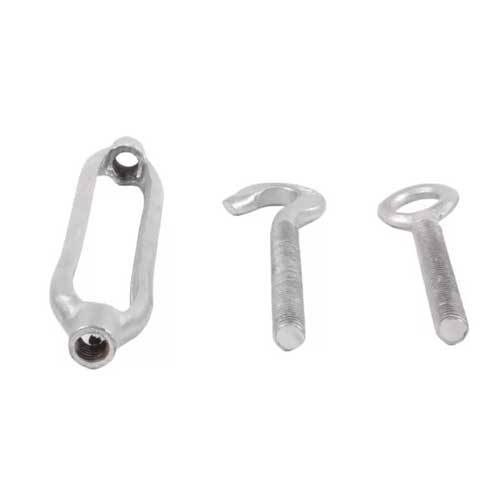

• Adjusting Rod: The central component that extends or retracts to adjust the distance between connected elements.
• Nut: A threaded fastener that, when turned, causes the adjusting rod to move.

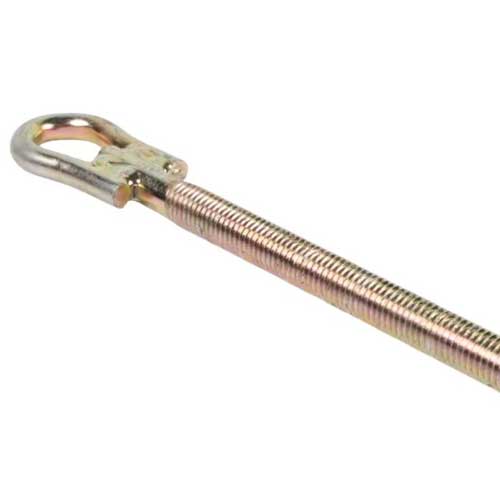

• Pull Rods: Rods with opposite-hand threads that, when the nut is tightened, pull towards each other, creating tension.
• Cover Plate: Protects the turnbuckle mechanism from environmental factors and damage.
• Fixing Plate: Ensures the turnbuckle is securely fastened to the structure.
• Guide Plate: Guides the movement of the adjusting rod and helps maintain alignment.
• Anti-Theft and Anti-Loosening Device: A special feature that requires a matching sleeve to unscrew the bolt, enhancing security.

Installation Method

• Assembly: The turnbuckle is attached to the structure by securing the fixing plate and ensuring the pull rods are properly aligned.
• Adjustment: A special matching sleeve is used to loosen the anti-theft bolt, allowing the nut to be turned and adjust the tension.
• Locking: Once the desired tension is achieved, the nut is tightened, and the anti-theft device is re-engaged for security.

Applicable Environmental Conditions

• Power Lines: Ideal for use as a high voltage tower rod positioning device, providing adjustable support and tension.
• Outdoor Applications: Designed to withstand various weather conditions due to its protective cover plate.
• Structural Support: Used in construction and engineering projects where adjustable tension is required.

Safety Considerations

• Proper Use: It is important to use the correct procedure for adjusting the turnbuckle to avoid over-tightening or damage.
• Regular Inspection: Periodic checks should be conducted to ensure the anti-theft device is functioning correctly and the turnbuckle is properly tightened.

Additional Information

• Material: Made from durable materials such as stainless steel or galvanized steel for corrosion resistance.
• Specifications: Available in various sizes and thread types to suit different load requirements.
• Compliance: Meets industry standards for mechanical fasteners and is tested for safety and performance.

The Turnbuckle is a versatile and reliable mechanical device, particularly suited for applications requiring adjustable tension and secure fastening, such as in power line infrastructure and heavy-duty construction projects.
