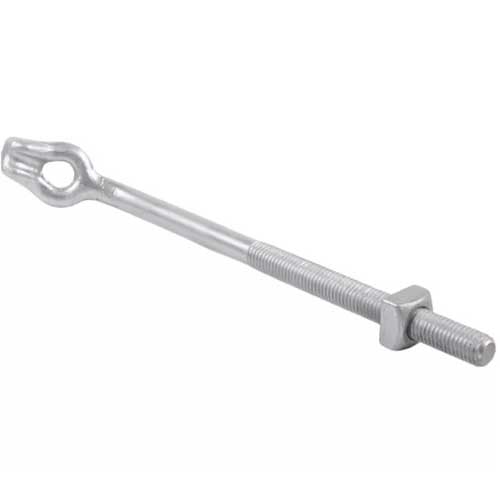

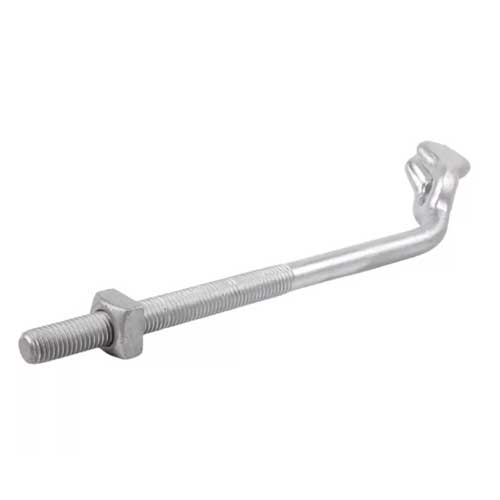

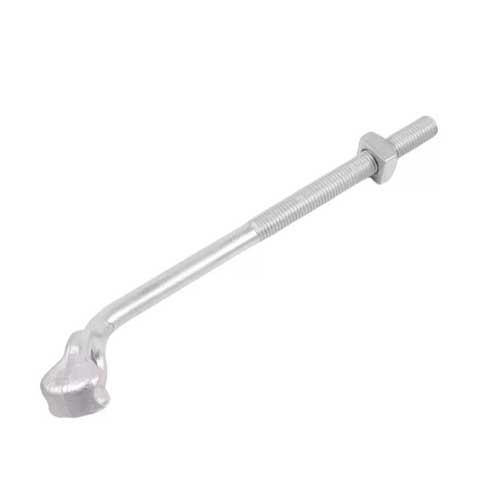

Thimble Eye Rod

The Thimble Eye Rod (Twin/Triple) is a vital component in guying systems, designed to provide a robust and reliable connection point for guy wires. These rods help maintain the stability of tall structures against environmental forces such as wind and seismic activity, ensuring their integrity and safety.

Structural Features:

1. Hot Dip Galvanization:
   • The rods are coated with a layer of zinc through hot dip galvanization, providing superior corrosion protection and extending their service life.
2. High-Quality Material:
   • Constructed from high-strength steel, these rods are designed to withstand the demanding conditions of outdoor environments and heavy loads.
3. Customizable Sizes:
   • Available in various diameters and lengths to meet different structural requirements. Options include:
     • Shaft diameters: 3/4 inch or 1 inch
     • Lengths: 6 to 10 feet
     • Helix diameters: 6 or 8 inches

Installation Method:

1. Preparation:
   • Ensure the installation site is clear of obstacles and the ground is stable.
2. Anchoring:
   • Insert the Thimble Eye Rod into the ground to the required depth, ensuring the helix provides adequate anchorage.
3. Guy Wire Connection:
   • Attach guy wires to the thimble eye, securing them tightly to maintain tension and stability.
4. Inspection:
   • After installation, inspect the connections and tension to ensure stability and security.

Applicable Environmental Conditions:

1. Temperature Range:
   • Suitable for operation in temperatures ranging from -40°C to +85°C, ensuring performance in extreme conditions.
2. Humidity:
   • Can function effectively in environments with relative humidity up to 95%, providing reliability in moist conditions.
3. Wind Resistance:
   • Designed to withstand high wind speeds, ensuring stability in severe weather conditions.
4. Seismic Resistance:
   • Capable of maintaining structural integrity during seismic events, providing reliable support under dynamic loads.
5. Corrosive Environments:
   • The hot-dip galvanized coating ensures resistance to corrosion, making it ideal for use in environments with high moisture or chemical exposure.
