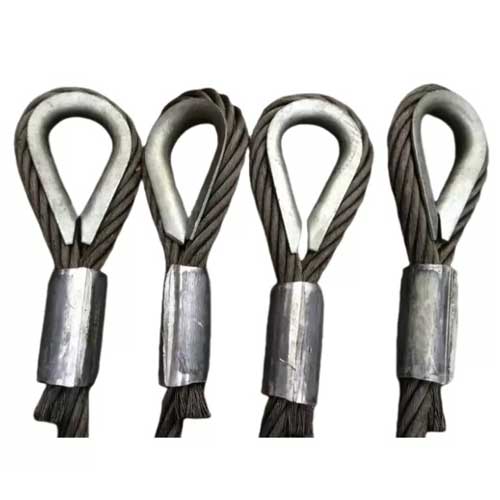

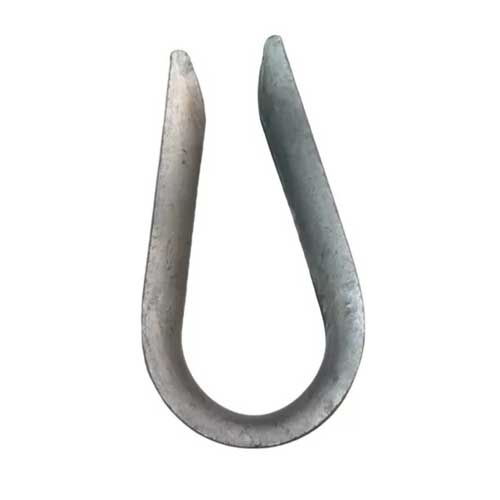

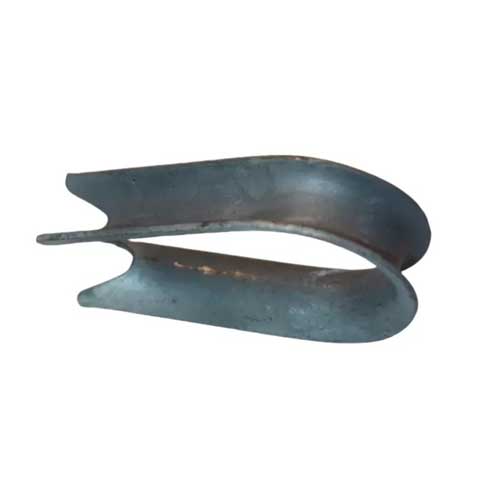

Stay thimble

A Stay Thimble is a protective component used in conjunction with guy clips and guy wires in structural support systems. It serves to guide and protect the guy wire, reducing wear and tear at the point of attachment to the pole or tower.

Product Introduction

• Name: Stay Thimble
• Purpose: To provide a smooth bearing surface for guy wires, minimizing friction and preventing the wire from chafing or fraying.

Structural Features

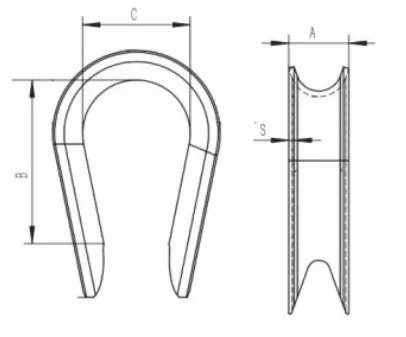

• Shape: The Stay Thimble is typically a cylindrical or slightly conical shape designed to fit over the guy wire.
• Material: Made from durable materials such as high-density plastic, fiberglass, or metal, ensuring strength and longevity.
• Bearing Surface: Features a smooth interior surface that reduces friction as the guy wire passes through.
• Attachment Mechanism: May include grooves, ridges, or a clamping system to secure the thimble to the pole or tower.

Installation Method

• Placement: The Stay Thimble is positioned over the guy wire at the point where it will attach to the guy clip or pole.
• Attachment: It is secured to the pole or tower using the attachment mechanism, ensuring the guy wire is properly aligned and cannot move within the thimble.
• Adjustment: Once in place, the guy clip is installed and tightened, with the guy wire running through the Stay Thimble to maintain correct tension and alignment.

Applicable Environment Conditions

• Temperature Tolerance: Capable of withstanding a wide range of temperatures, from -50°C to +100°C, suitable for diverse climates.
• UV Resistance: Made from materials resistant to UV degradation, ensuring long life in direct sunlight.
• Chemical Resistance: Resistant to environmental chemicals and pollutants, maintaining structural integrity in various conditions.
• Moisture Resistance: Designed to operate effectively in wet conditions, with materials that do not degrade in the presence of moisture.
• Wind and Load Resistance: Engineered to support the guy wires under high wind loads and tension, ensuring reliability in storm-prone areas.

Quality requirements:

1, Stay thimble should be smooth and flat, there should be no damage to the wire rope cracks, defects, sharp edges and surface rough unequal defects. The tip of the core ring should be freely fitted, and the tip should be cut to half the depth of the groove.
2, Stay thimble surface should be hot dip galvanized, and the surface should be smooth and flat, there should be no leakage plating, zinc particles, bubbles, cracks and other defects, galvanized layer in normal application, there should be enough adhesion strength.
3, Stay thimble material can be selected A3 steel or 15, 35 high-quality carbon steel.
4, Stay thimble safety load should not be less than 32% of the minimum breaking force of the wire rope.
5, when used, the Stay thimble selection should be consistent with the specifications of the wire rope , the diameter of the shaft pin used should not be less than twice the diameter of the wire rope.
