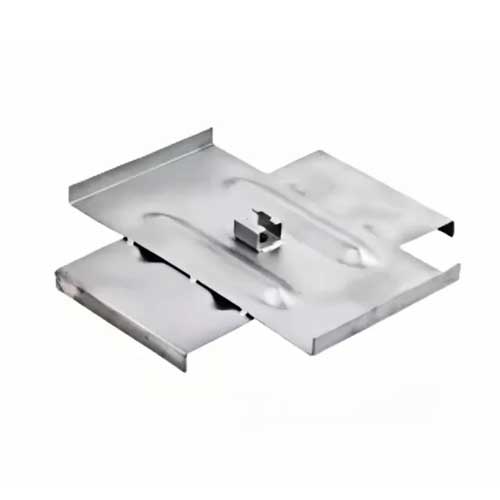

Stay Plate

The stay plate is a metallic plate designed for use in electrical power distribution systems. It is essential for enhancing cable retention and improving the integrity of multi-cable transits. The stay plate is typically installed between each row of modules in multi-cable transit devices, providing a reliable solution to withstand pressure from blasts and water ingress. It also plays a crucial role in horizontal or floor installations by holding modules in place before final compression.

Structural Features:

1. High-Strength Material:
   • Constructed from durable metal, providing excellent resistance to mechanical stress and environmental conditions.
2. Enhanced Cable Retention:
   • Increases cable retention by securely holding cables in place, reducing the risk of slippage or movement.
3. Pressure Resistance:
   • Designed to withstand high pressure from blasts and water ingress, ensuring the integrity of multi-cable transits.
4. Versatile Design:
   • Suitable for use in both horizontal and vertical installations, offering flexibility in various applications.

Installation Method:

1. Positioning:
   • Installed between rows of modules in multi-cable transit devices, ensuring proper alignment and stability.
2. Horizontal/Floor Installations:
   • Holds modules in place during horizontal or floor installations, providing support before final compression.
3. Combination with Stay Rod:
   • Used in conjunction with stay rods to create a reliable anchorage system that resists tension and prevents shifting or toppling.

Applicable Environmental Conditions:

1. Temperature Range:
   • Suitable for operation in temperatures ranging from -40°C to +85°C, ensuring performance in extreme conditions.
2. Humidity:
   • Can function effectively in environments with relative humidity up to 95%, providing reliability in moist conditions.
3. Wind and Seismic Resistance:
   • Provides stability and support in conditions with high wind loads and seismic activity, preventing structural movement or failure.
4. Soil Erosion Resistance:
   • Helps maintain structural integrity in areas prone to soil erosion, ensuring long-term stability.
