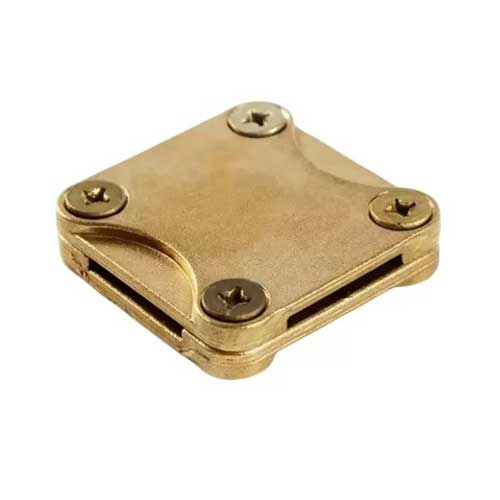

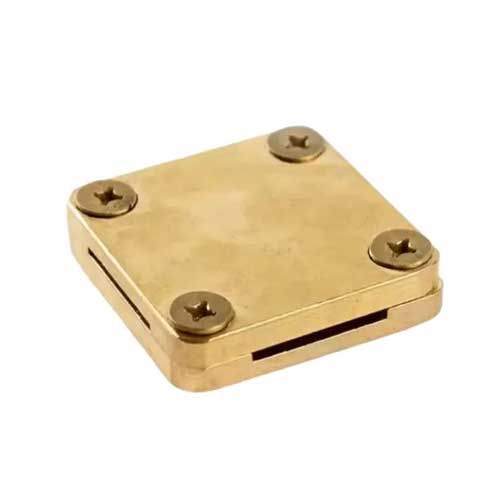

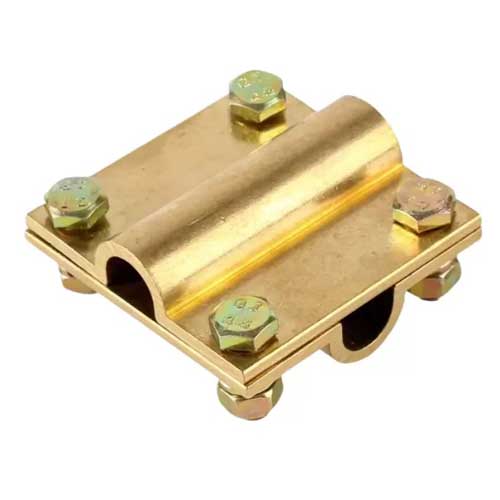

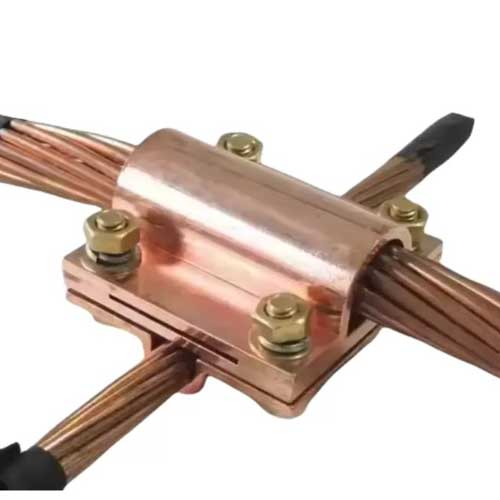

Square Clamp

The Square Clamp is a type of cable management hardware designed to secure and organize electrical cables, wires, and hoses in various industrial, commercial, and residential applications. Known for its robust construction and ease of use, the square clamp is ideal for maintaining a neat and safe cable layout.

Structural Features

• Shape and Design: The clamp features a square profile that provides a larger surface area for better grip and distribution of pressure along the cables.
• Material: Typically made from high-quality plastics, metals, or composites, ensuring durability and resistance to environmental factors.
• Adjustability: Many square clamps come with adjustable designs to accommodate cables of different sizes and bundle thicknesses.
• Fastening Mechanism: They often include screws or clips that allow for secure fastening and can be tightened as needed to prevent cable movement.

Installation Method

• Surface Preparation: Ensure the surface where the clamp will be installed is clean, dry, and free of any obstructions.
• Cable Organization: Organize the cables into the desired bundle, ensuring they are neatly arranged to prevent tangling or stress points.
• Clamping: Position the square clamp over the cable bundle and secure it using the provided fastening mechanism, ensuring even pressure distribution across the cables.
• Adjustments: Adjust the clamp as necessary to accommodate any changes in the cable bundle size or to maintain optimal tension.

Service Environment Conditions

• Temperature Range: The clamp should be suitable for use within a wide temperature range, from low to high temperatures, depending on the material.
• Humidity Resistance: Designed to resist moisture and maintain functionality in humid environments.
• Corrosion Resistance: Made from materials that resist corrosion to ensure longevity, especially for outdoor or harsh environments.
• Load Capacity: Capable of supporting the weight and strain of the cable bundle without deformation or failure.
• Vibration and Shock Resistance: Suitable for environments where there may be vibrations or shocks, maintaining secure cable hold.

The Square Clamp is a versatile cable management solution that enhances safety and organization in electrical installations. It is important to follow the L&RGR’s guidelines for specific installation and environmental requirements to ensure optimal performance and longevity.
