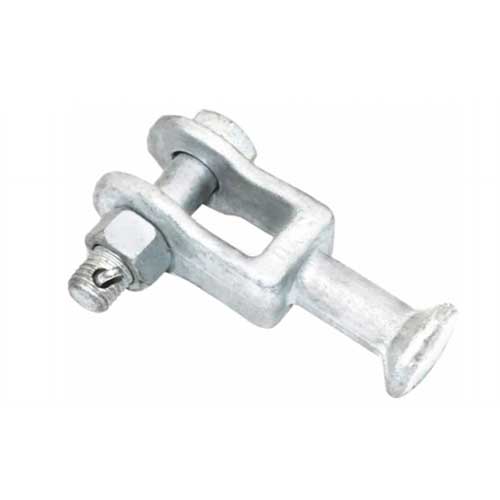

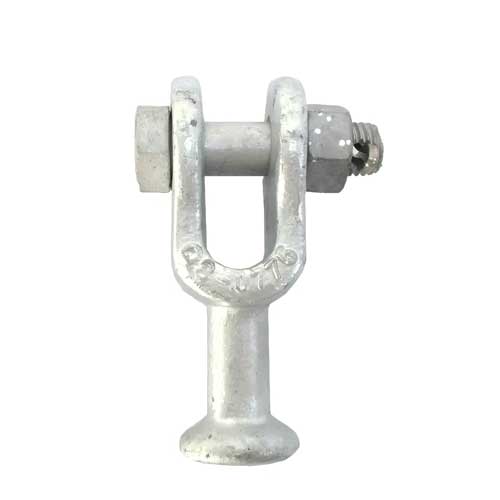

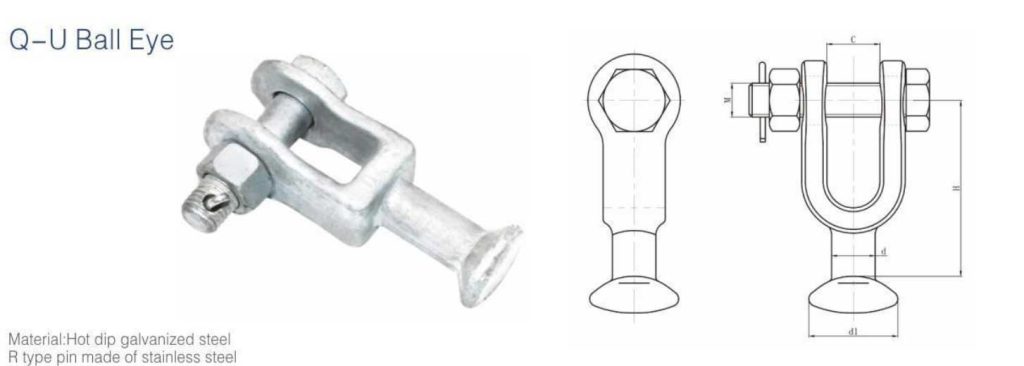

Q-U Ball Eye

Application
● The connection fittings are used to connect and combine insulators,suspension clamps,tension clamps and protective fittings intosuspension or tension strings(groups).
●The meaning of the letters in the product model:q-ball head hanging ring P-plane(parallel)contact w-bowl head s-double U-U L-jointplate,pull rod,diamond z-right angle y-extension b-plate t-adjustment.
● Classification and application:U-shaped hanging ring,double plate,right angle hanging plate,extension ring,U-shaped screw and otherfittings are called general fittings,which are used for the connection between insulator strings and fittings,between clamps and insulatorstrings,and between ground wires and towers.Ball head hanging ring and bowl head hanging plate are special fittings for connecting balland socket insulators.
Standard
● ISO 1461:2009 Hot dip galvanized coatings on fabricated iron and steel articles-Specifications and test methods
● ISO 4948-1 Steels—Classification—Part 1:Classification of steels into unalloyed and alloy steels based on chemical composition
●BS 3288 Insulator and conductor fittings for overhead power lines
