Pre-insulated sleeve
Material:E-Cu;Al-99.6%, Aluminium alloy, Aluminium,AI-99.5%
Share:
Product Description

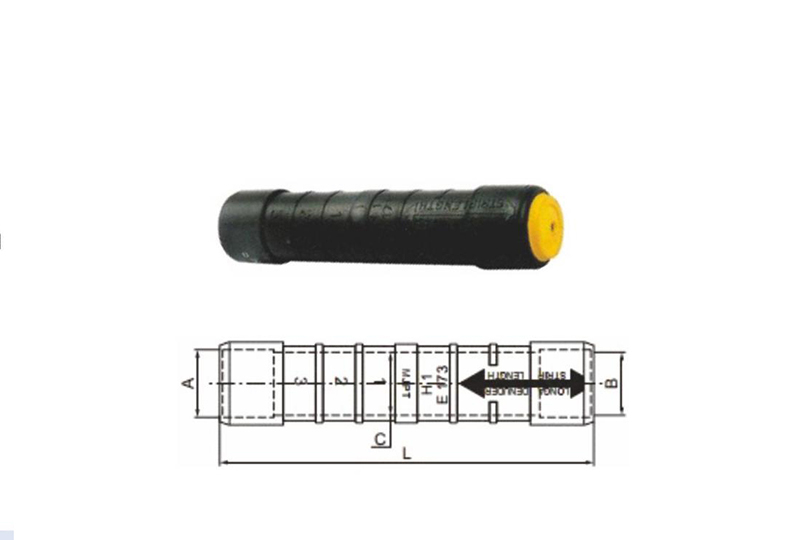

MJPT Pre-insulated sleeve
Product property
MJPT is designed to connect the insulated cable(include ABC cable)inaerial distribution network.Itis in accordance with NFC33-021.The sleeve iswith some tension.
And its cap can prevent the water into the barrel.It is colored differently todistinguish the cable sizes.Marked with type,cable size,die size,innercable length and number of crimping.
| Material:Aluminium | ||||
| Type | Cable size(mm²) | Plastic sleeve diameter(mm) | Length(mm) | |
| A | B | C | L | |
| MJPT 16/16 | 16 | 16 | 20 | 98.5 |
| MJPT 25/25 | 25 | 25 | 20 | 98.5 |
| MJPT 35/35 | 35 | 35 | 20 | 98.5 |
| MJPT 50/50 | 50 | 50 | 20 | 98.5 |
| MJPT 70/70 | 70 | 70 | 20 | 98.5 |
| MJPT 95/95 | 95 | 95 | 20 | 98.5 |

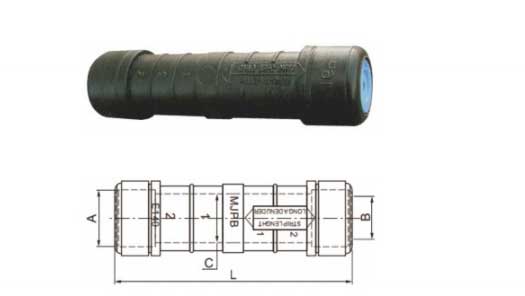

MJPB Pre-insulated sleeve
Product property
MJPB is designed to connect the insulated cable (include ABC cable).It is inaccordance with NFC33-021.The sleeve is without tension.
And its cap can prevent the water into the barrel.It is colored differently todistinguish the cable size.Marked with type,cable size,die size,inner cablelength and number of crimping.
| Material:AI-99.5% | ||||
| Type | Cable size(mm²) | Plastic sleeve diameter(mm) | Length(mm) | |
| A | B | C | L | |
| MJPB 6/16 | 6 | 16 | 20 | 98.5 |
| MJPB 10/16 | 10 | 16 | 20 | 98.5 |
| MJPB 16/16 | 16 | 16 | 20 | 98.5 |
| MJPB 16/25 | 16 | 25 | 20 | 98.5 |
| MJPB 25/25 | 25 | 25 | 20 | 98.5 |

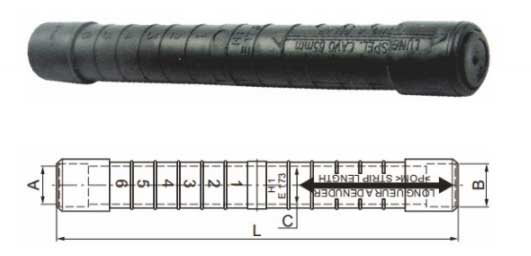

MJPN Pre-insulated sleeve
Product property
MJPTN is designed to connect the neutral messenger in aerial bundledcable.It is in accordance with NFC33-021.The sleeve is with full tension.
And its cap can prevent the water into the barrel.It is colored differently todistinguish the cable size.Marked with type,cable size,die size,inner cablelength and number of crimping.
| Material:Aluminium alloy | ||||
| Type | Cable size(mm²) | Plastic sleeve diameter(mm) | Length(mm) | |
| A | B | C | L | |
| MJPTN 54.6/54.6 | 54.6 | 54.6 | 20 | 172.5 |
| MJPTN 54.6/70 | 54.6 | 70 | 20 | 172.5 |
| MJPTN 70/70 | 70 | 70 | 20 | 172.5 |
| MJPTN95/95D | 95 | 95 | 20 | 172.5 |

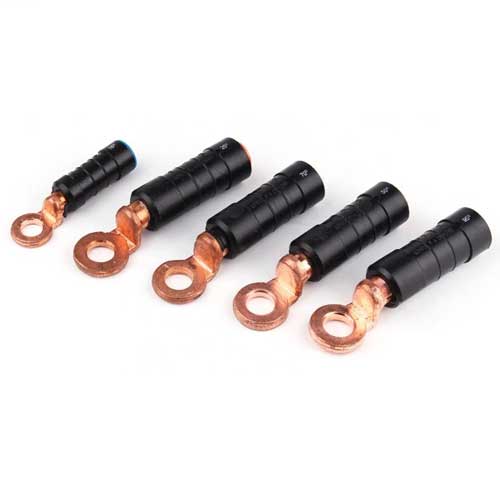

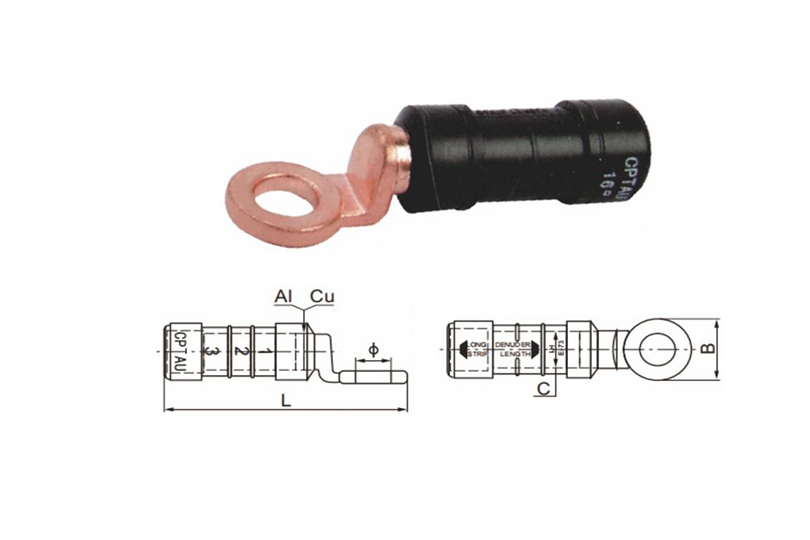

CPTAU Pre-insulated bimetal lug
Product property
CPTAU is designed to connect the insulated cable (include ABC cable).It isin accordance with NFC33-021.
The waterproof cap can prevent the water into the barrel.It is coloreddifferently to distinguish the cable size.Marked with type,cable size,diesize,inner cable length and number of crimping.
| Material:E-Cu;Al-99.6% | ||||
| Type | Dimension(mm) | Length(mm) | ||
| C | B | φ | L | |
| CPTAU16-10 | 16 | 20 | 10.5 | 73 |
| CPTAU25-12 | 20 | 24 | 13 | 98.5 |
| CPTAU35-12 | 20 | 24 | 13 | 98.5 |
| CPTAU50-12 | 20 | 24 | 13 | 98.5 |
| CPTAU54.6-12 | 20 | 24 | 13 | 98.5 |
| CPTAU70-12 | 20 | 24 | 13 | 98.5 |
| CPTAU95-12 | 20 | 24 | 13 | 98.5 |
