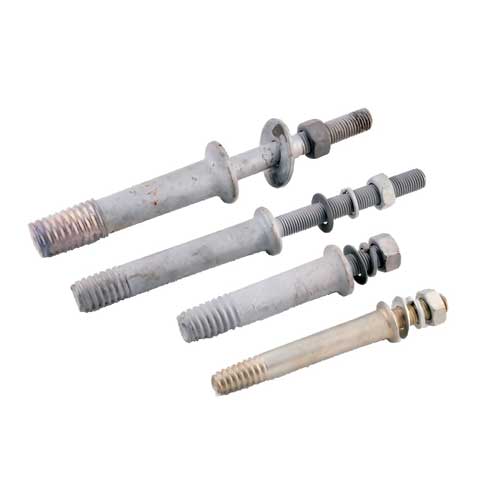

Pilot Insulator Pin / Transmission Insulator Pins

Product Overview:

Pilot Insulator Pins, also known as Transmission Insulator Pins, are critical components used in overhead transmission and distribution systems. These pins are designed to securely attach insulators to utility poles, cross-arms, or other structures, ensuring the stability and reliability of electrical systems. Made from high-strength materials and treated for corrosion resistance, Pilot Insulator Pins are essential for maintaining the integrity of power distribution networks.

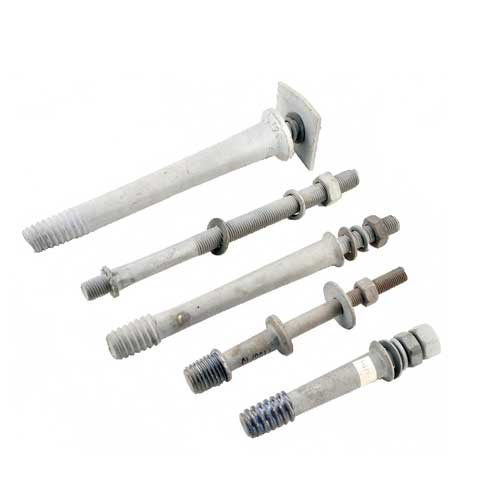

Structural Features:

High-Strength Material:
Constructed from durable materials such as forged steel, malleable iron, or aluminum alloy, providing exceptional strength and longevity.
Corrosion Resistance:
Often treated with hot-dip galvanization or other anti-corrosion coatings to protect against rust and environmental degradation, ensuring long-term performance.
Design:
Available in various designs to accommodate different types of insulators (e.g., pin-type, suspension-type). The pin typically features a threaded or smooth shaft for secure attachment.
Threaded End:
The threaded end allows for easy and secure installation of insulators, ensuring a tight fit and stable connection.
Installation Method:

Preparation:
Ensure all necessary tools and materials are available before starting the installation process. Verify the specifications of the Pilot Insulator Pin to ensure compatibility with the insulators and structures being used.
Positioning:
Position the insulator pin at the desired location on the utility pole, cross-arm, or other structures.
Securing the Pin:
Insert the pin through the pre-drilled hole in the structure and secure it using appropriate nuts and washers. Tighten the nuts securely to ensure a firm connection.
Mounting the Insulator:
Screw or attach the insulator onto the threaded end of the pin, ensuring it is tightly secured.
Inspection:
Inspect the installation to ensure the pin and insulator are securely fastened and properly aligned. Check for any signs of wear or damage.
Applicable Environmental Conditions:

Temperature Range:
Suitable for operation in temperatures ranging from -50°C to +150°C, ensuring performance in extreme weather conditions.
Humidity:
Effective in environments with high humidity, providing reliability in moist conditions.
Weather Resistance:
Designed to withstand harsh weather conditions, including high winds, heavy rain, snow, and UV exposure.
Corrosive Environments:
The anti-corrosion coatings provide excellent resistance to corrosion, making the pins suitable for environments exposed to salt, chemicals, or industrial pollutants.

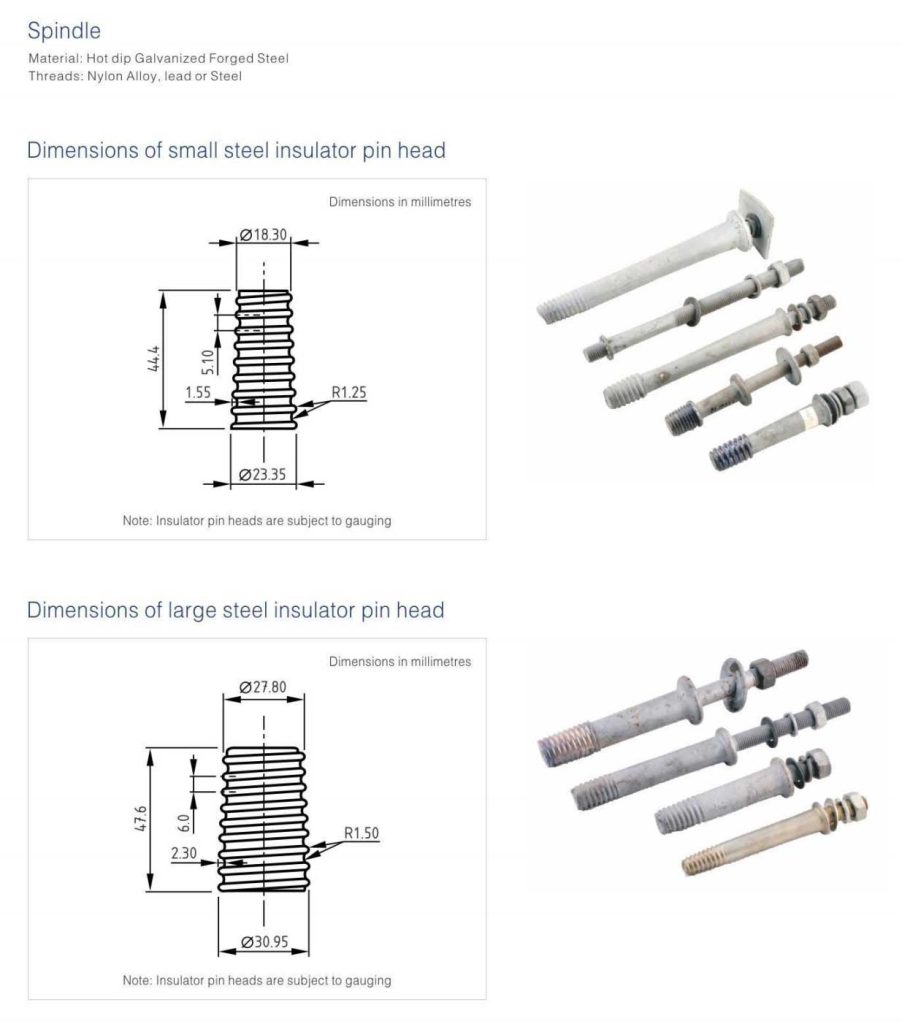

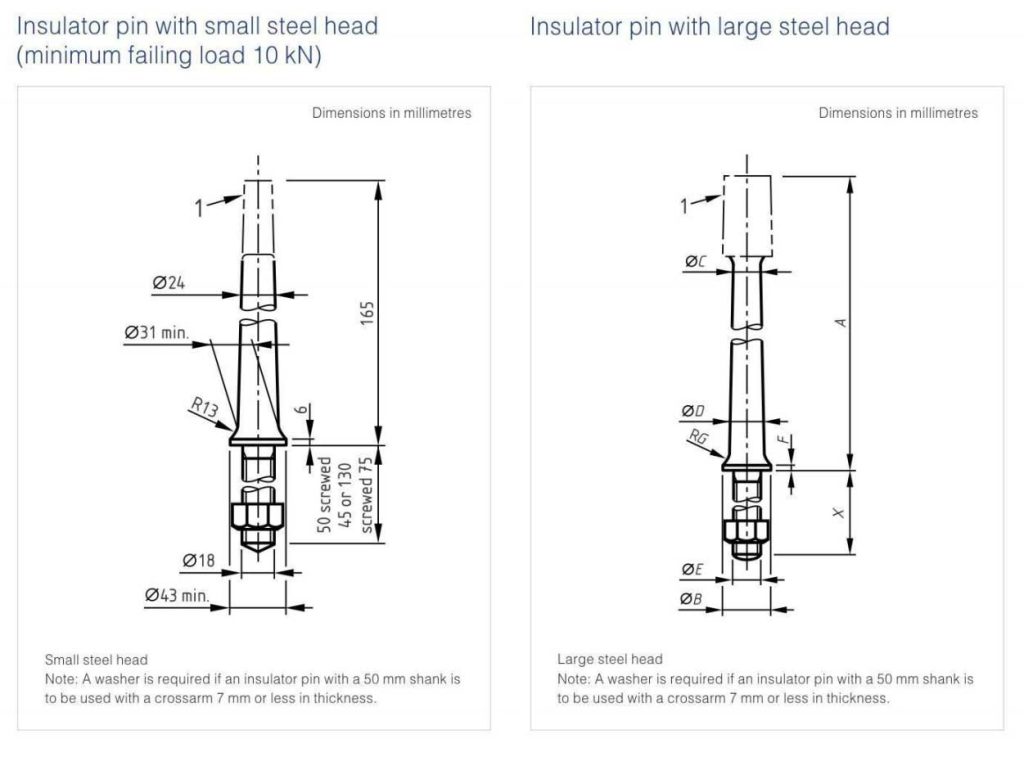

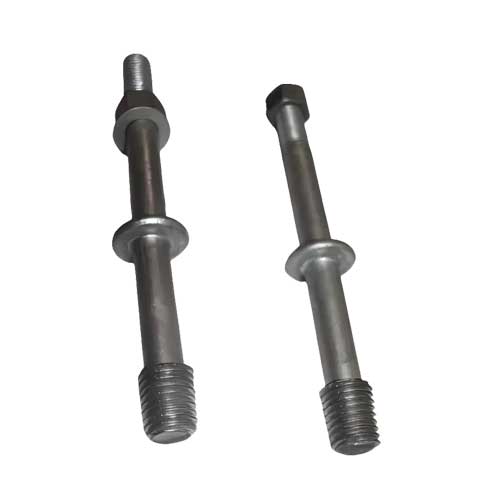

Dimensions of insulator pin with large steel head

Dimension X to be 50 mm screwed 45 mm, or 130 mm screwed 75 mm.
