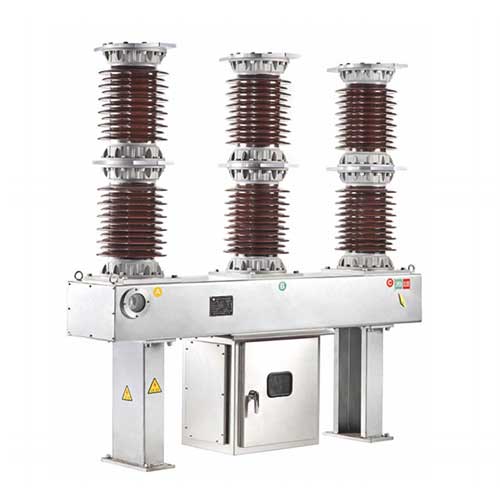

LW8-35 outdoor high-volt AC SF6 circuit breaker is applicablefor outdoor 50Hz three-phase HV electric equipment andcontrol&protection of 36kV power distribution &transmissionsystem,as well as measurement and protection via the breakerenclosed current transformer.Breaker is also used forinterconnected circuit breakers and switching capacitor banks.
Service and Installation Conditions
●Ambient temperature:-30℃~+40℃(special order-40℃~+40℃)
●Elevation:≤1000m(Value over 1000m should be indicated in advance.)
●Humidity:Daily average≤95%;Monthly average≤90%(25℃)
●Wind speed:≤35m/s
● Creepage distance:25mm/kV or 31mm/kV
Main Parameters
| tem | Unit | Specification | |
| Rated voltage | kV | 36 | |
| Rated insulating level |
Lightning impulse withstand voltage(1.2/50μs) | kV | 215/200 |
| Power frequency withstand voltage(1min) | kV | 118/95 | |
| Rated current | A | 1600/2000/2500/3150 | |
| Rated short circuit withstand/breaking current | kA | 20/25/31.5 | |
| Rated SF6 pressure(20℃ REL.) | MPa | 0.40/0.50 | |
| Lockout pressure(20℃ REL.) | MPa | 0.30/0.40 | |
| Rated short circuit withstand/breaking current | kA | 20/25/31.5 | |
| Rated short-circuit making current | kA | 50/60/80 | |
| Rated short circuit switching current | kA | 50/60/80 | |
| Rated out-of-phase breaking current | kA | 5/6.3/8 | |
| Breaking times of the rated short circuit withstand/breaking current | Times | 20 | |
| Mechanical life | Times | 10000 | |
| Closing time(under rated operation voltage) | s | ≤0.1 | |
| Opening time(under rated operation voltage) | s | ≤0.06 | |
| Rated operating sequence | 0-0.3s-CO-180s-CO | ||
| Rated switching single capacitor bank current | A | 400 | |
| Rated short-circuit duration | S | 4 | |
| Annual leakage | %Year | ≤0.3 | |
| Moisture content of SF6(20℃) | uL/L | ≤150 | |
| Voltage of opening and closing coil | V | AC:220/380 DC:48/110/220 | |
| Voltage of charging motor | V | AC:220[ DC:110/220 | |
