Product Description

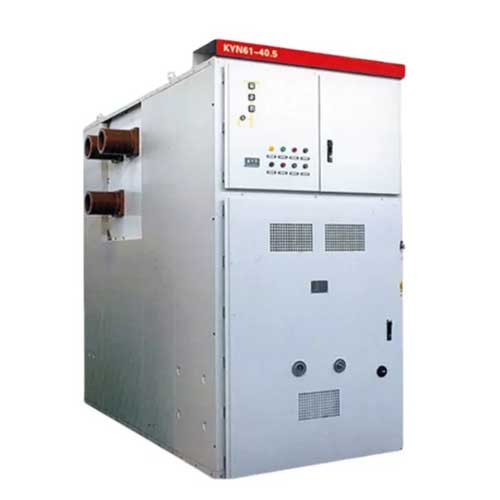

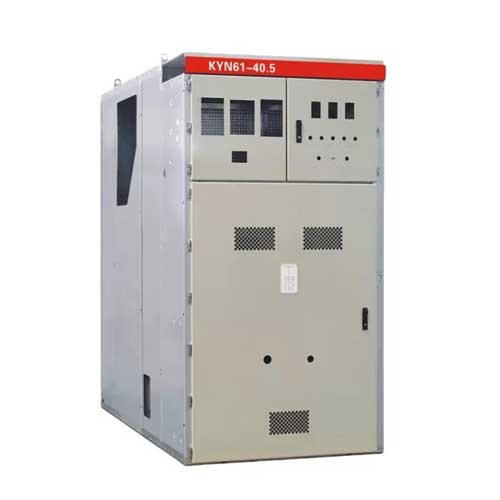

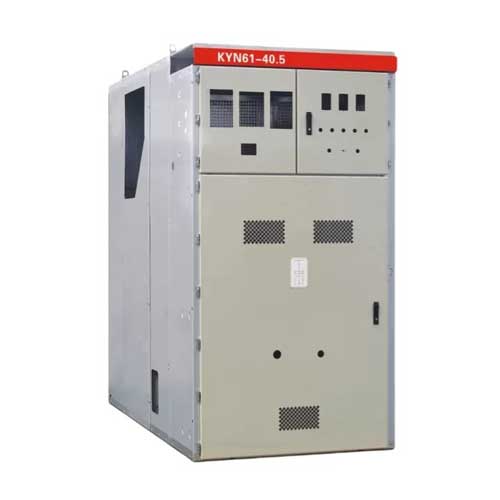

Product Overview:
The KYN61 High Voltage Metal-Clad Movable Switchgear is an innovative solution for medium to high voltage electrical systems. Engineered for reliability and safety, it stands as a cornerstone in various sectors, including industry, commerce, and utilities.
Product Features:
- Robust Metal-Clad Construction: Offers superior protection against environmental factors, ensuring durability and longevity.
- Movable Mechanism: Facilitates ease of maintenance with its user-friendly design, allowing for swift breaker removal and insertion.
- Exceptional Insulation Quality: Employs top-tier insulating materials to guarantee consistent performance under varying conditions.
- Scalable Modular Design: Caters to diverse installation needs with its customizable and expandable framework.
- Advanced Safety Interlocks: Integrates multiple safety features to mitigate risks associated with incorrect operations.
Structural Composition:
- The KYN61 is meticulously crafted with a metal-clad design that not only shields internal components but also provides a secure operational environment.
- Its movable structure is underpinned by a robust mechanism that supports effortless movement, crucial for maintenance activities.
- High-quality insulation materials are utilized throughout the switchgear, reinforcing its dielectric strength and safety.
- The modular architecture of the KYN61 allows for seamless integration and scalability, accommodating future expansion with minimal disruption.
- Safety interlocks are thoughtfully incorporated to prevent unauthorized access and incorrect operation sequences, enhancing overall safety.
Installation and Setup:
- Preparation: The site must be meticulously prepared to ensure cleanliness and environmental stability.
- Mounting: The switchgear is securely fastened using the provided fixtures, with an emphasis on correct alignment and levelness.
- Connections: Electrical connections are meticulously established following the manufacturer’s wiring schematic for accuracy and safety.
- Grounding: The switchgear is grounded to avert electrical threats, with connections made to the designated grounding busbar.
- Testing: Rigorous testing is conducted to validate the installation’s integrity and the switchgear’s functionality.
Applicable Environmental Conditions:
- Ambient Temperature: No more than +40C and no less than -15C.Averagetemperature is no more than +35C within 24 hours.
- Altitude: No more than 1000m.
- Relative Humidity: the average daily value is no more than 95%, theaverage monthly value is no more than 90%.
- Earthquake Intensity: No more than 8 degrees.
- Vapor pressure: average daily value is no more than 2.2kPa, averagemonthly value is no more than 1.8kPa.
- Installation locations without fire,explosion danger, serious pollution,chemical corrosion and violent vibration.

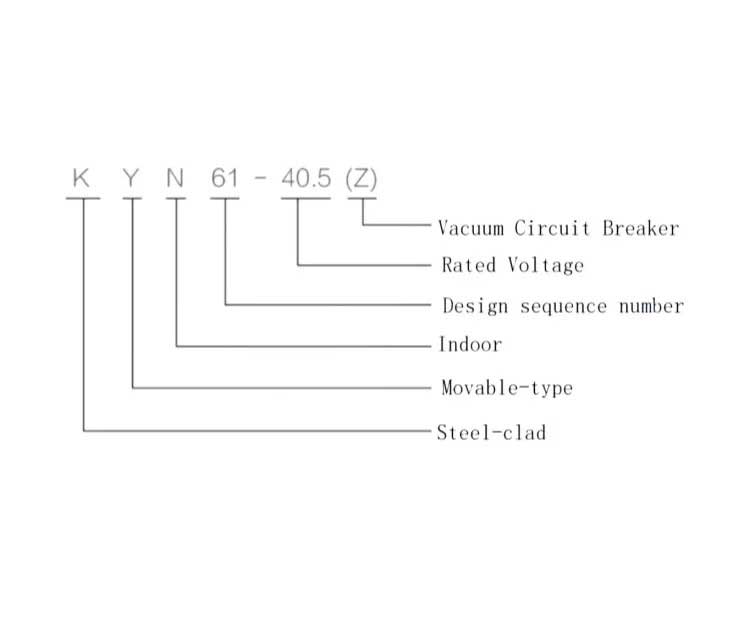

Model and meaning

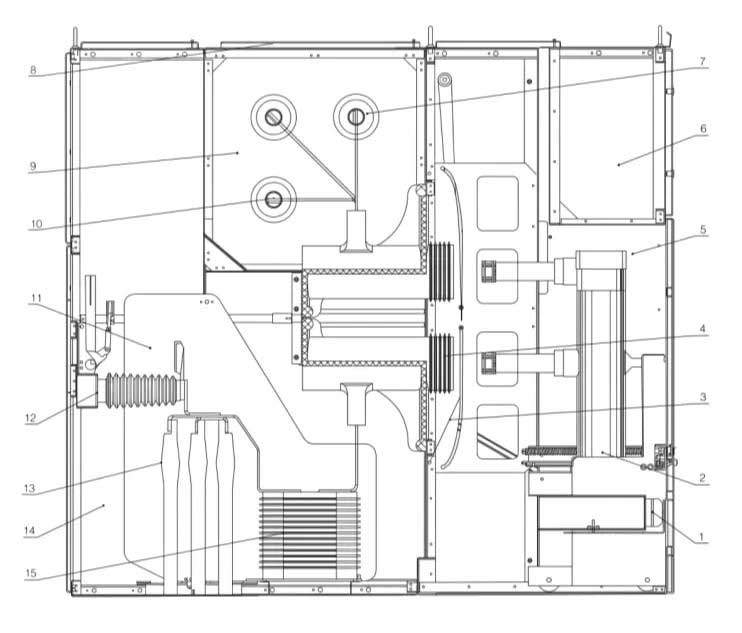

Structure
| 1、Secondary plug | 9、Busbar compartment |
| 2、 Circuit breaker trolley | 10、Main busbar |
| 3、Valve | 11、Insulating plate |
| 4、Contact box | 12、 Earthing switch |
| 5、Circuit breaker compartment | 13、Cable |
| 6、 Meter compartment | 14、 Cable compartment |
| 7、Busbar bushing | 15、Current transformer |
| 8、Pressure relief |
Specifications
| Content | Unit | Value | ||
|---|---|---|---|---|
| Rated Voltage | kv | 24 | 36 | |
| Rated Current | A | 630/1250/1600/2000/2500 | ||
| Rated Frequency | Hz | 50/60 | ||
| Power Frequency Withstand Voltage in 1 min
|
Phase,Earthed | kV | 52 | 80 |
| Isolating Fracture | kV | 58 | 85 | |
| Lightning Impulse Withstand Voltage(Peak)
|
Phase,Earthed | kv | 110 | 170 |
| lsolating Fracture | kv | 120 | 180 | |
| Rated Current of the Main Busbar | A | 630/1250/1600/2000/2500 | ||
| Rated Current of the Branch Busbar | A | 630/1250/1600/2000/2500 | ||
| Rated Short-circuit Breaking Current | kA | 20/25/31.5 | ||
| Rated Short-time Withstand Current(4s) | kA | 20/25/31.5 | ||
| Rated Peak Withstand Current | kA | 50/63/80 | ||
| Rated Short Circuit Making Current | kA | 50/63/80 | ||
| Frequency Withstand Voltage in 1 min of Aux Control Loop | V | 2000 | ||
| Internal Arc Duration Test(0.5s) | kA | 31.5 | ||
| Degrees of Protection | IP | IP4X(IP2X when the front door is opened) | ||
| Rated Voltage of Aux Control Loop | V | AC or DC110/220 | ||
Product Advantages
- 1. The cabinets and partition board adopting hot-dip Al-Zn alloy-coatedsteel sheet and frame adopting assembled structure make high overall intensity and good earth continuity.
- 2. The cabinet is combined type and the handcart of breaker is floor structure
- 3. The new composite insulating vacuum circuit breaker has thecharacteristics of interchangeability and simple replacement.
- 4. The handcart adopts screw propulsion mechanism, which moves thehandcart easily and prevent mis- operation to damage the propulsion
- 5. All the operations could be done when the cabinet door is closed
- 6. The interlocking between the main switch, the handcart and the switchcabinet adopts the mandatory mechanism of mechanical locking,meeting the functions of five- preventions.
- 7. The cable room is spacious and can be connected to a number of cables.
- 8. The degrees of protection is IP4X，which effectively prevents theequipment from being invaded by sundries and insect pests
- 9.The product runs safely and reliably through the harsh condensation, filthand internal arc tolerance test.
Application Places
- Power Distribution in Industrial and Mining Enterprises: The KYN61 switchgear is widely used in industrial and mining enterprises for power distribution. It is designed to handle the demands of heavy-duty power systems in these environments.
- Substations and Power Plants: It is suitable for use in power plants and substations, where it serves as a critical component in the distribution and control of electrical energy.
- High-rise Buildings: The switchgear is also used in high-rise buildings for power distribution, ensuring a reliable and secure supply of electricity to various systems within the building.
- Residential Communities: In residential communities, the KYN61 switchgear plays a vital role in distributing power to homes and other facilities, contributing to a stable and safe electrical supply.
