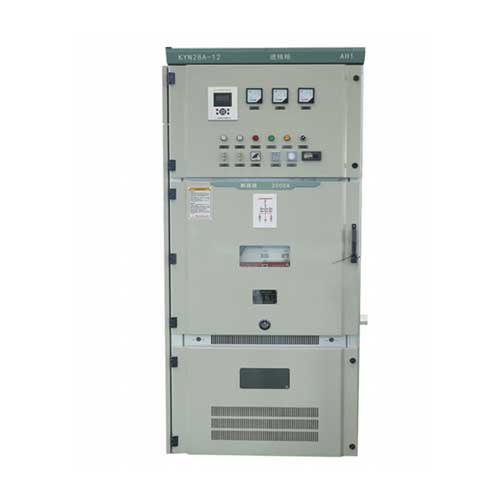

Product Description
Product Overview:
The KYN28A series is engineered to meet the demands of modern electrical systems, offering a high level of safety, reliability, and operational flexibility. With its metal-enclosed structure and movable mechanism, it is suitable for use in power plants, substations, industrial facilities, and commercial buildings.
Key Features:
- Metal-Clad Protection: Provides robust physical protection and resistance to environmental factors.
- Movable Design: Allows for easy access to the circuit breaker for maintenance and replacement.
- High-Voltage Capability: Designed to handle high voltage loads, ensuring efficient power distribution.
- Safety Interlocking: Equipped with interlocking mechanisms to prevent unauthorized access and incorrect operations.
- Compact and Modular: Features a compact design with modular components for flexible installation and expansion.
Environmental Conditions
- Ambient Temperature: No more than +40C and no less than -15C.Averagetemperature is no more than +35C within 24 hours.
- Altitude:No more than 1000m.
- Relative Humidity: the average daily value is no more than 95%, theaverage monthly value is no more than 90%
- Earthquake Intensity: No more than 8 degrees.
- Vapor pressure: average daily value is no more than 2.2kPa, averagemonthly value is no more than 1.8kPa.
Installation locations without fire,explosion danger, serious pollution.chemical corrosion and violent vibration.

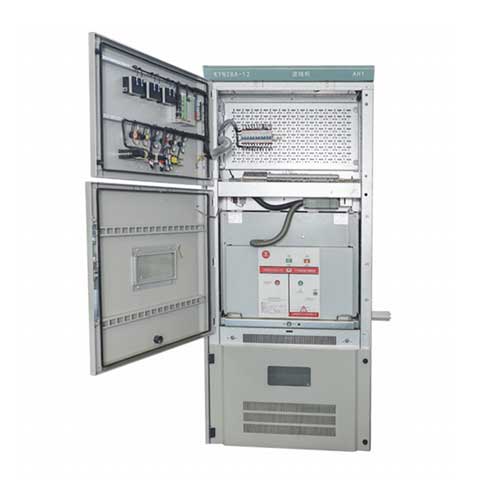

Panel structure

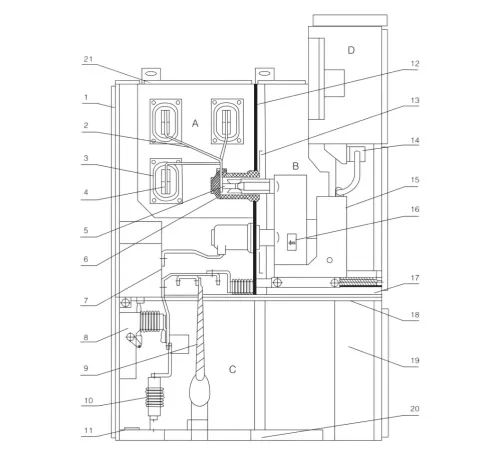

A.Busbar compartment B.Circuit breaker trolley compartment
C.Cable compartment D.Relay meters compartment
| 1. Shell2. Branch busbar
3. Busbar bushing 4. Main busbar 5. Static contact assembly 6. Contact box 7. Current transformer 8. Earthing switch 9.Cable 10. Surge arrester
|
11. Earthing main busbar12. Detachable partition
13. Board (Valve) 14. Secondary plug 15.Circuit breaker trolley 16. Heating device 17. Withdrawable horizontal board 18. Earthing switch operation 19. Secondary trunking 20. Base board 21. Pressure relief channe |
Specifications
| Content | Unit | Value | |
|---|---|---|---|
| Rated Voltage | kV | 12 | |
| Rated Current | A | 630~4000 | |
| Rated Frequency | Hz | 50/60 | |
| Power Frequency Withstand Voltage in 1 min
|
Phase.Earthed | kv | 42 |
| Isolating Fracture | kv | 48 | |
| Lightning Impulse Withstand Voltage(Peak)
|
Phase,Earthed | kV | 75 |
| Isolating Fracture | kv | 85 | |
| Rated Current of the Main Busbar | A | 630~4000 | |
| Rated Current of the Branch Busbar | A | 630~4000 | |
| Rated Short-circuit Breaking Current | kA | 20/25/31.5/40/50 | |
| Rated Short Circuit Making Current | k A | 50/63/80/100/125 | |
| Rated Short-time Withstand Current(4s) | kA | 20/25/31.5/40/50 | |
| Rated Peak Withstand Current | kA | 50/63/80/100/125 | |
| Frequency Withstand Voltage in 1 min of Aux Control Loop | V | 2000 | |
| Intenal Arc Duration Test(0.5s) | kA | 31.5~40 | |
| Rated Voltage of Aux Control Loop | V | AC or DC 110/220 | |
| Degrees of Protection | IP | IP4X(IP2X when the front door is opened) | |
Product Advantages
- 1. The cabinets and partition boards adopting hot-dip Al-Zn alloy-coatedsteel sheet and frame adopting multiple bending technology make high overall intensity and good earth continuity.
- 2. Fully considering the operation characteristics of the neutral point of the power system without grounding or through the arc suppression coil grounding,increase the insulation clearance and enhance the insulation level, so as to ensure that the switchgear meets the high requirements for the insulation strength.
- 3. Completely metal clad and absolutely compartments separation.
The degrees of protection is IP4X，which effectively prevents the equipment from being invaded by sundries and insect pests. - 4. Simple and effective mechanical block for five- preventions, preventing from mis-operating.
The movable handcart use sworm and worm wheel propelling mechanism.The same type of handcart can be interchanged completely, easy to operate and maintain. - 5. lt can be installed away from the wall, which is more convenient for double sides maintenance. Or it can be installed against the wall maintain in front of the cabinet,with less space occupation.
- 6. width of panel is 550 mm, which can increase the utilization of distribution room
The product runs safely and reliably through the harsh condensation, filthand internal arc tolerance test.
Application Places
Suitable for AC 50HZ, rated working voltage 3-10KV, rated working current up to 3150A power distribution system, can be used as power generation, substations, factories, high-rise buildings and other places of power supply, power supply and large motor start, and loop control, protection and monitoring.
- Power Distribution in Industrial and Mining Enterprises: The KYN28A switchgear is used in industrial and mining enterprises for power distribution, ensuring efficient energy allocation within these operations.
- Electrical Infrastructure in High-rise Buildings: In high-rise buildings, the KYN28A switchgear plays a crucial role in the electrical infrastructure, providing a reliable system for power distribution.
- Substations and Power Plants: It is utilized in power plants and substations for the reception and distribution of electrical energy, serving as a key component in the power system.
