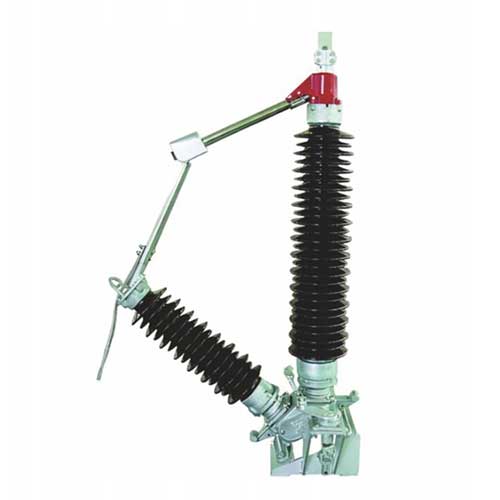

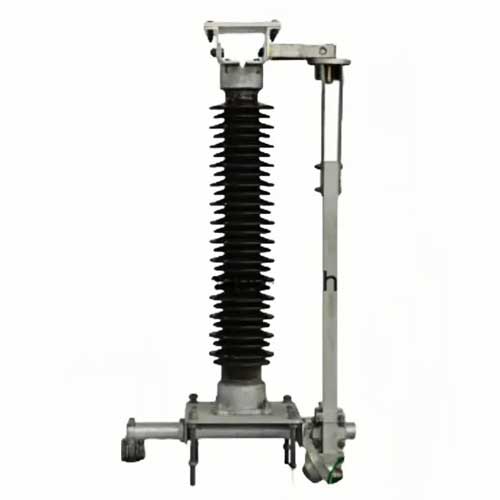

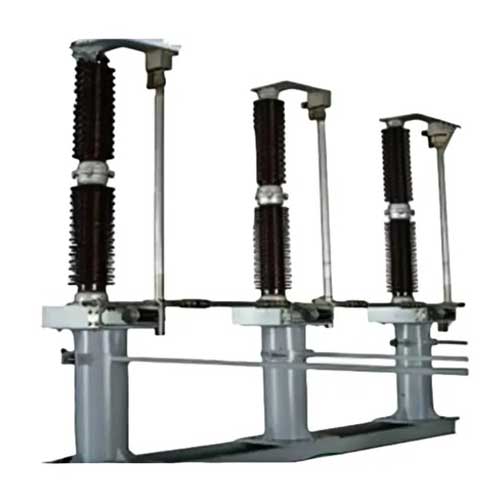

Product Description
Structural Features
- Durable Construction: Built with high-quality materials to withstand the demands of regular use in various environmental conditions.
- Clear Indicators: Features clear visual indicators to show the status of the earthing switch, ensuring operators can easily confirm the position.
- Robust Mechanism: A reliable mechanical design ensures long-term durability and consistent performance.
- Seamless Integration: Compatible with a wide range of electrical systems and control panels for easy integration.
Functionality
- Earthing Operation: The JW Series facilitates the process of connecting electrical systems to the earth, preventing the risk of electrical shock and equipment damage.
- Safety Compliance: Meets stringent safety requirements, ensuring compliance with international electrical safety standards.
- Ease of Use: Intuitive design allows for simple and clear earthing operations, reducing the potential for errors.
Service and Installation Conditions
- Ambient Temperature: The switch should be operated in environments with ambient temperatures ranging from -30°C to 40°C.
- Elevation: Suitable for installations at various altitudes, ensuring flexibility across different geographical locations.
- Humidity: Designed to function effectively in areas with high humidity, making it suitable for both indoor and outdoor applications.
- Corrosion Resistance: Features components treated to resist corrosion, extending the service life of the switch.
Specifications
| Item | Unit | Specification | ||||
| Rated Voltage | kV | 36 | 72.5 | 123 | 145 | |
| Rated Current | A | 630, 1250, 1600, 2000, 2500, 3150 | ||||
| Rated short withstand current and time | kA/s | 25~50 / 4 | ||||
| Rated perk/marking withstand current | kA | 63~125 | ||||
| Lightning impulse withstand voltage (1.2/50 μs) | To earth | kV | 200 | 325 | 500 | 650 |
| To phase | kV | 200 | 325 | 500 | 650 | |
| Across open DS | kV | 215 | 405 | 650 | 750 | |
| 1min power frequency withstand voltage | To earth | kV | 95 | 140 | 230 | 275 |
| To phase | kV | 95 | 140 | 230 | 275 | |
| Across open DS | kV | 118 | 180 | 300 | 315 | |
| Rated mechanical terminal load | Level of lateral load | N | 750 | 750 | 1500 | 1500 |
| Level of vertical load | N | 500 | 500 | 1000 | 1000 | |
| Vertical force | N | 750 | 750 | 1000 | 1000 | |
| Max. Manual operating moment | N.m | 200 | ||||
| Control voltage | V | AC 220, DC 110/220 | ||||
| Motor voltage | V | AC 220/380, DC 110/220 | ||||
Product Advantages
- 1. Ultimate Safety Assurance: The JW Series Earthing Switch is designed with an emphasis on safety, featuring a fail-safe mechanism that ensures a secure earth connection, significantly mitigating the risk of electrical incidents.
- 2. Durable and Low-Maintenance Construction: Crafted from premium materials, the JW Series requires minimal upkeep, ensuring reliability over extended periods without the need for frequent servicing.
- 3. Versatile Functionality: Suitable for a broad spectrum of electrical systems, the JW Series Earthing Switch can be seamlessly integrated into both new and existing electrical infrastructures for a wide range of applications.

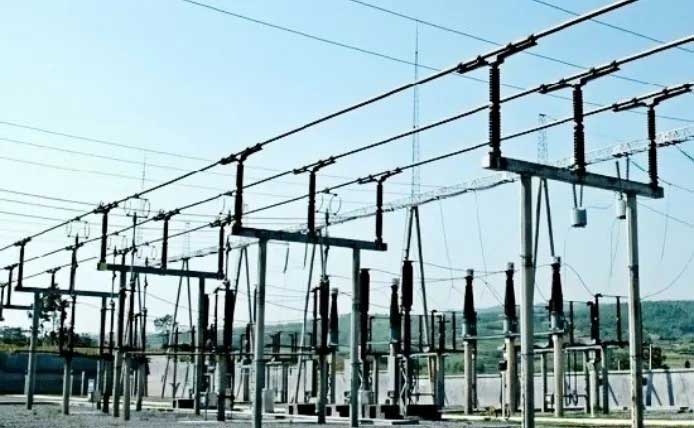

Application Places
- Maintenance and Testing: Essential for earthing during maintenance and testing of electrical equipment to ensure safety.
- System Protection: Used to protect electrical systems from damage during fault conditions by providing a path to earth.
- Compliance with Safety Standards: Ideal for applications where adherence to electrical safety codes is mandatory.
- Infrastructure Projects: Suited for new electrical infrastructure projects where reliable earthing solutions are critical.
