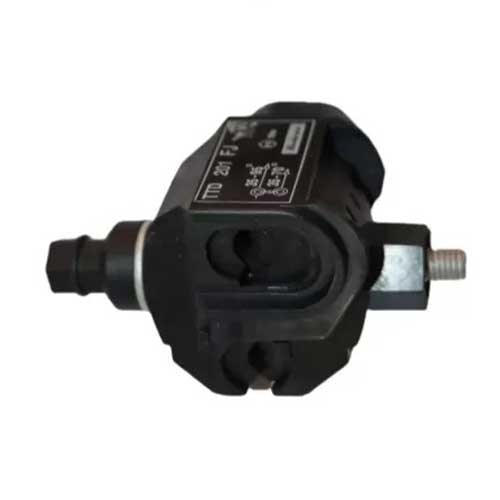

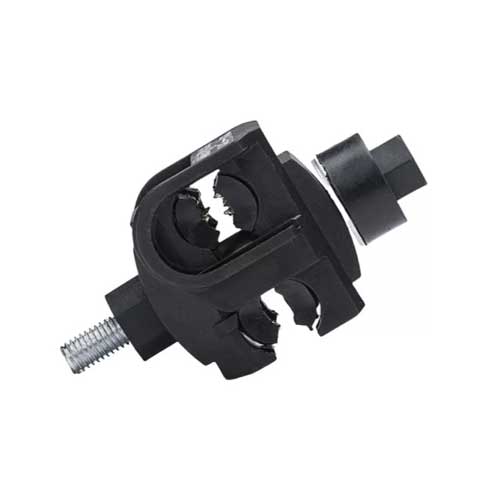

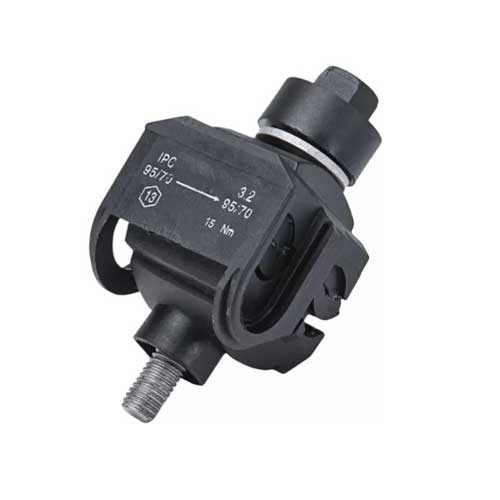

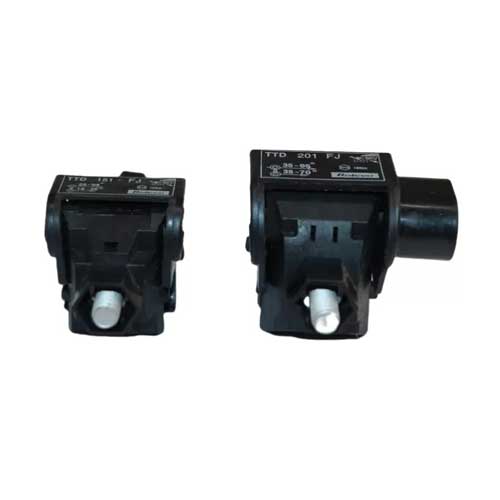

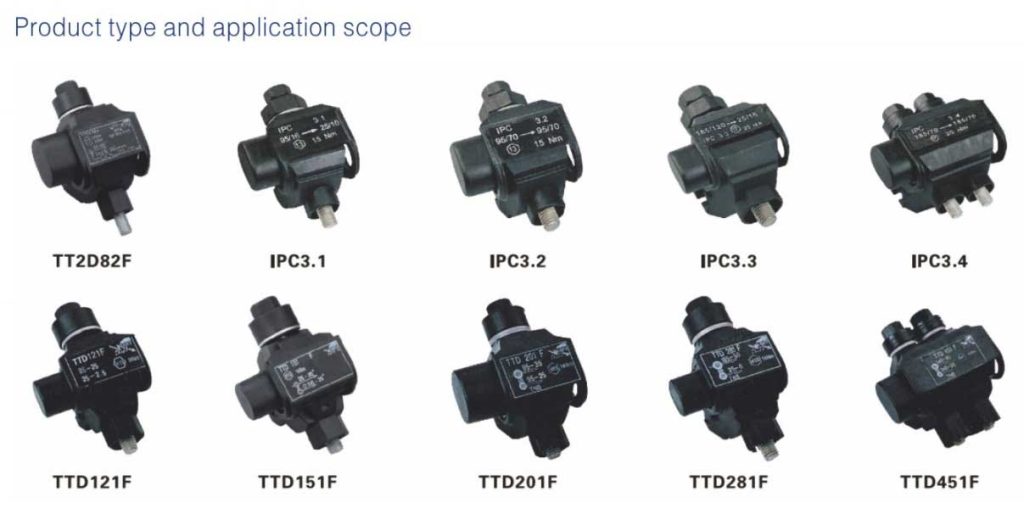

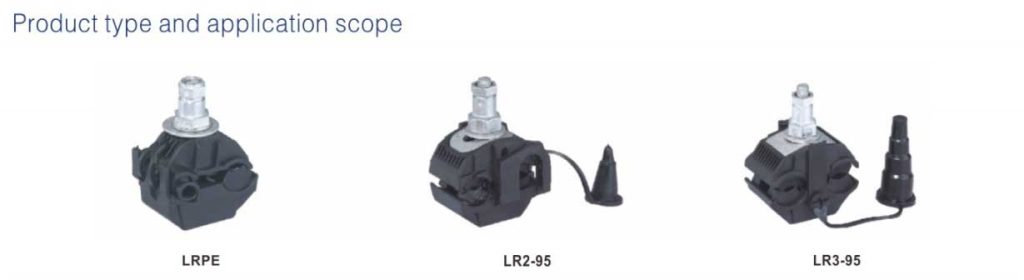

Insulation piercing connector(IPC)

Product Introduction:

The IPC for ABC Insulation Piercing Connector is a state-of-the-art electrical accessory designed to provide a secure and efficient connection to insulated wires or cables. This innovative connector is suitable for a variety of applications, offering a reliable and time-saving alternative to traditional wire connection methods.

General
●Piercing connector,simple installation,need not strip the cable coat.
●Moment nut,piercing pressure is constant,keep good electric connection and make no damage to lead.
●Self-seam frame,wetproof,waterproof,and anti-corrosion,extend the using life of insulated lead and connector
●Adopted special connecting tablet,apply to joint of Cu(Al)and Cu(Al)or Cu and Al
●Smallelectric connecting resistance,connecting resistance less than 1.1 times of the resistance of branch conductor with the same length.
●Special insulated case body,resistance toillumination and environmental aging,the insulation strength can up to 12KV.
●Arc surface design,apply to connection with the same(different)diameter,wide connection scope(0.75mm²-400mm²).

Structural Features:

1. Precision Piercing Mechanism: Features finely crafted piercing contacts that ensure a direct and secure connection with the conductor.
2. Insulated Housing: The connector’s body is made from premium insulating material to prevent electrical exposure and ensure operator safety.
3. Locking Collar: An adjustable locking collar allows for a snug fit on cables of various sizes, maintaining consistent pressure on the piercing contacts.
4. Torque Nut Design: A torque nut is included for precise tightening, ensuring a reliable connection without over-tightening.

How to choosing Insulation piercing connector

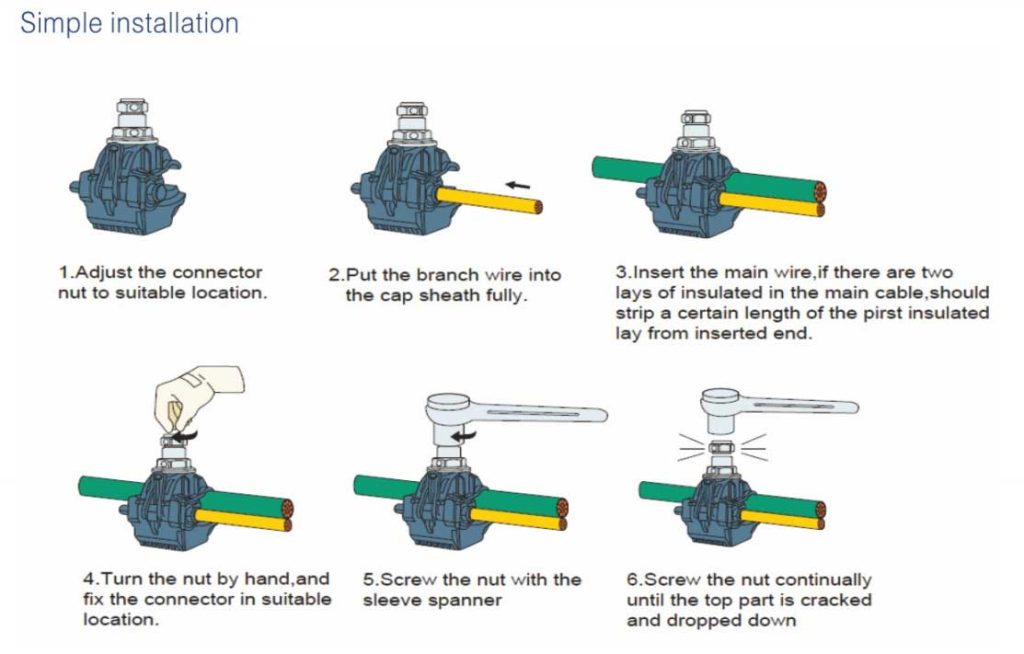

●Simple installation
Con be branch of cable without striping the insulated coat and the joint is completely insulated.Make branch in the random location of cablewithout cutting offthe main cable.Simple and reliable installatijust need sleeve spanner,can beinstalled with on live line.
●Safe use
The joint has good resistance to distortion,quake,fire,wet,electrochemical corrosion and aging,need no maintenance.Has been usedsuccessfully for 30 years
●Economical cost
Small installation space,save the cost of bridge and land construction.In structural application,there need no terminal box,junction boxand return wire of cable,save cable cost.The cost of cables and clamps is lower than other power supply system
