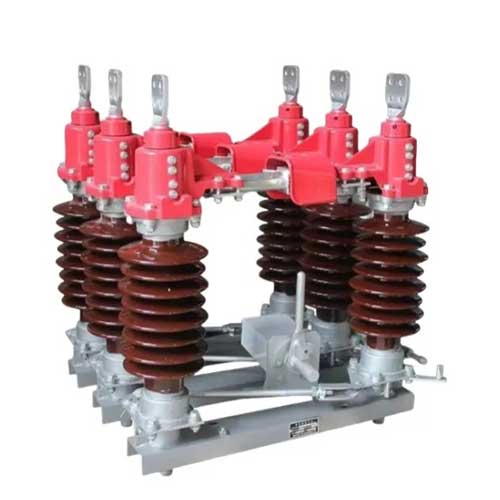

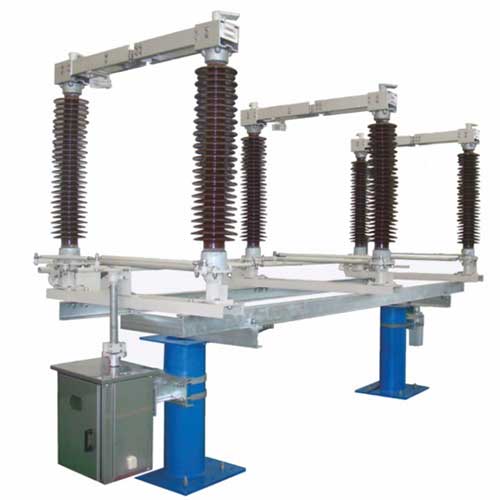

Product Description
Structural Features

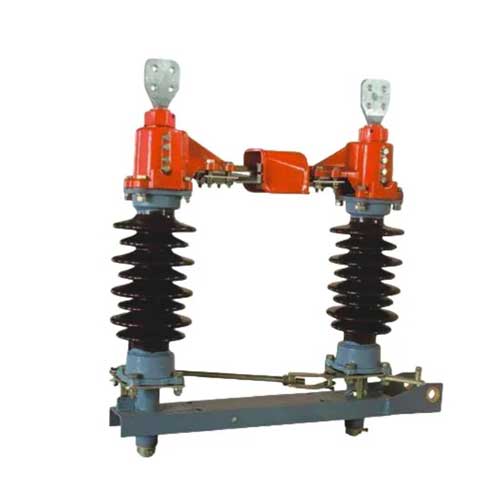

- Two Post Design: The compact and sturdy structure of the GW4 Series ensures stability and ease of installation.
- Weather-Resistant Enclosure: Protects the disconnector’s internal components from environmental factors, prolonging service life.
- Clear Status Indicators: Offer immediate visual feedback on the status of the disconnector, enhancing safety and operational control.
- Easy Integration: Compatible with existing grid infrastructure, allowing for seamless incorporation into various electrical systems.
Functionality
- Circuit Disconnection: The GW4 Series is designed to safely and efficiently disconnect electrical circuits, reducing the risk of electrical hazards during maintenance.
- Centre-Break Mechanism: This feature provides clear and visible break points, ensuring complete isolation of the circuit for safe operations.
- Outdoor Resilience: Built to withstand outdoor conditions such as rain, dust, and temperature extremes, the GW4 Series maintains performance and reliability.
Service and Installation Conditions
- Ambient Temperature: The disconnector should be operated in environments with ambient temperatures ranging from -30°C to +40°C.
- Elevation: It is recommended that installations do not exceed an altitude of 1000 meters for optimal performance.
- Humidity: The area should maintain a daily average relative humidity of ≤95% and a monthly average of ≤90%.
- Wind Speed: Designed to withstand wind speeds up to 35 m/s, ensuring stability in high wind conditions.
Specifications
| Item | Unit | Specification | ||||
| Rated Voltage | kV | 36 | 72.5 | 123 | 145 | |
| Rated Current | A | 630, 1250, 1600, 2000, 2500, 3150 | ||||
| Rated short withstand current and time | kA/s | 25~50 / 4 | ||||
| Rated perk/mar king withstand current | kA | 63~125 | ||||
| Lightning impulse withstand voltage (1.2/50 μs) | To earth | kV | 200 | 325 | 500 | 650 |
| To phase | kV | 200 | 325 | 500 | 650 | |
| Acrou open DS | kV | 215 | 405 | 650 | 750 | |
| 1min power frequency withstand voltage | To earth | kV | 95 | 140 | 230 | 275 |
| To phase | kV | 95 | 140 | 230 | 275 | |
| Acrou open DS | kV | 118 | 180 | 300 | 315 | |
| Rated mechanical terminal load | Level of lateral load | N | 750 | 750 | 1500 | 1500 |
| Level of vertical load | N | 500 | 500 | 1000 | 1000 | |
| Vertical force | N | 750 | 750 | 1000 | 1000 | |
| Max. Manual operating moment | N.m | 200 | ||||
| Control voltage | V | AC 220, DC 110/220 | ||||
| Motor voltage | V | AC 220/380, DC 110/220 | ||||
Product Advantages
- 1.
Enhanced Safety: The clear break points in the GW4 Series Disconnector provide a visible and secure isolation, which is crucial for ensuring the safety of personnel and equipment during maintenance and fault conditions. - 2. Robust Construction: Built with a sturdy design, the disconnector can withstand harsh environmental conditions, including extreme temperatures, heavy winds, and seismic activities, without compromising its performance.
- 3. Low Maintenance: The durable materials and construction of the GW4 Series mean that it requires minimal upkeep, reducing the overall cost of ownership and minimizing downtime for maintenance.
- 4. Weather-Resistant Enclosure: The disconnector features an enclosure that protects its internal components from the elements, ensuring reliable operation in all weather conditions.
Enhanced Safety: The clear break points in the GW4 Series Disconnector provide a visible and secure isolation, which is crucial for ensuring the safety of personnel and equipment during maintenance and fault conditions.
Application Places
- High Voltage Power Systems: The disconnector’s high reliability makes it suitable for use in high voltage power systems where consistent performance is critical .

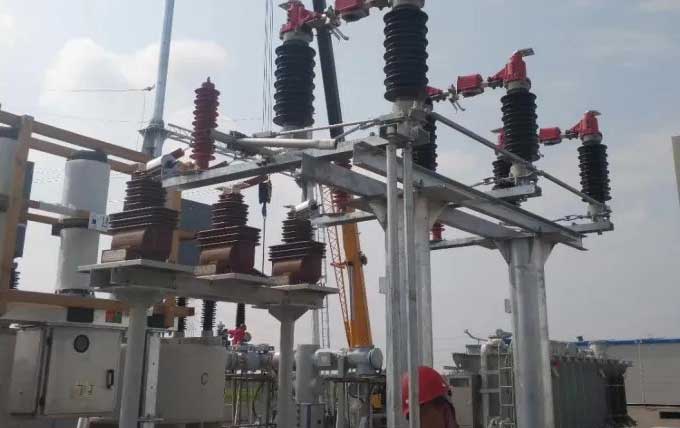

- Outdoor Substations: With its durable design, the GW4 Series is low on maintenance, an essential feature for outdoor substations where weather conditions can be harsh .
- Transmission and Distribution Networks: The safety-focused design with clear break points ensures the disconnector’s use in transmission and distribution networks, providing a safe way to isolate sections of the network for maintenance or emergency response .
- Industrial and Commercial Facilities: The GW4 Series is versatile enough for a range of power distribution applications in industrial and commercial facilities, enhancing system flexibility and ensuring operational safety.
