Guy Clip

A Guy Clip, also known as a Guy Clamp or Guy Cramp, is a specialized hardware component integral to guying systems. It is used to secure guy wires to utility poles, transmission towers, or other supporting structures, ensuring structural stability and tension.

Structural Features

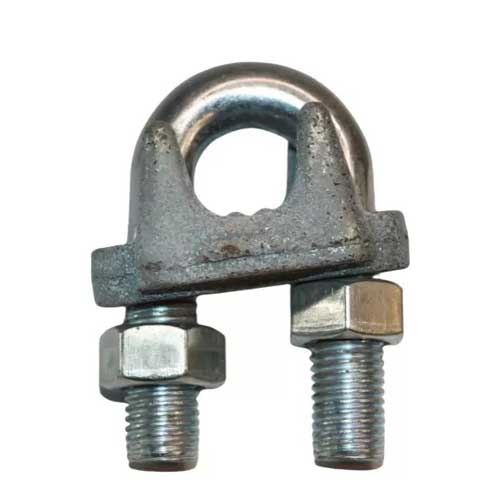

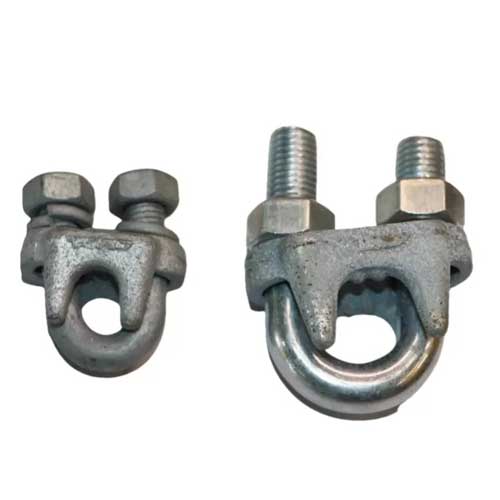

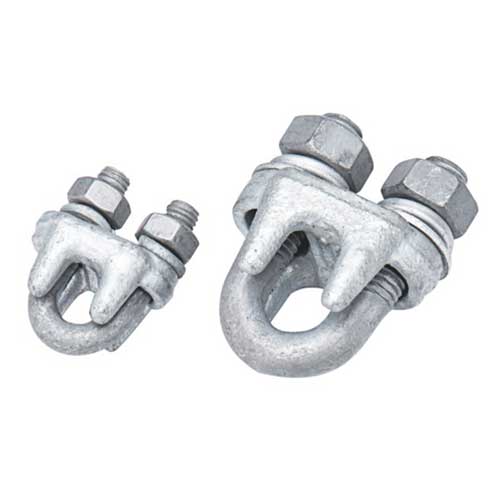

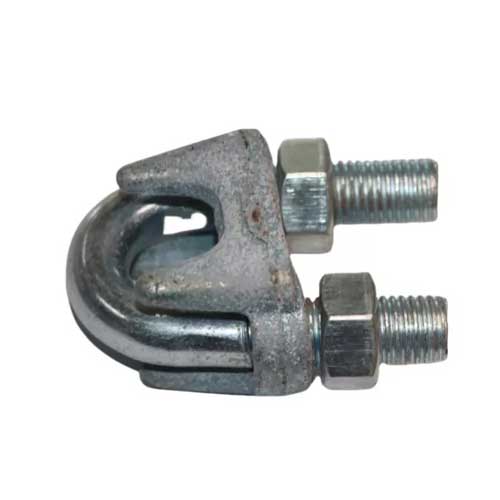

• Body Shape: Characterized by a U- or C-shaped design that encircles the pole or tower, facilitating a secure fit.
• Wire Opening: Features an opening for the guy wire to pass through, allowing the clip to grip the wire effectively.
• Tightening Mechanism: Equipped with a screw, bolt, or similar mechanism to adjust the clamping force, ensuring a customized and secure hold.
• Material: Typically made from durable materials such as galvanized steel or stainless steel to resist corrosion and ensure longevity.

Installation Method

• Selection: Choose a guy clip with the appropriate size and strength rating for the specific guy wire diameter and the environmental conditions at the installation site.
• Positioning: Place the guy clip on the pole or tower at the correct height and orientation to provide optimal tension and support.
• Tightening: Using the provided tools, tighten the screw or bolt mechanism to the manufacturer’s recommended torque, ensuring a secure grip without damaging the guy wire.

Applicable Environment Conditions

• Temperature Range: Designed to withstand extreme temperatures from -40°C to +80°C, ensuring functionality in both cold and hot climates.
• UV Resistance: Constructed with materials that exhibit high resistance to UV degradation, maintaining integrity in sunlight exposure over time.
• Corrosion Resistance: The use of galvanized steel or stainless steel ensures the guy clip can resist corrosion in various atmospheric conditions, including coastal areas with high salinity.
• Wind Load: Engineered to secure guy wires capable of withstanding high wind loads up to 300 km/h (186 mph), suitable for regions prone to storms and high winds.
• Moisture Resistance: The materials and protective coatings used are resistant to moisture and humidity, preventing rust and ensuring a firm grip in rainy or humid environments.
• Soil Conditions: Compatible with a variety of soil types, including clay, sandy, and rocky soils, for anchoring guy wires with minimal ground movement.
• Seismic Activity: In regions with seismic activity, guy clips must be designed to secure guy wires that can absorb the stress and movement associated with earthquakes.
