Product Description

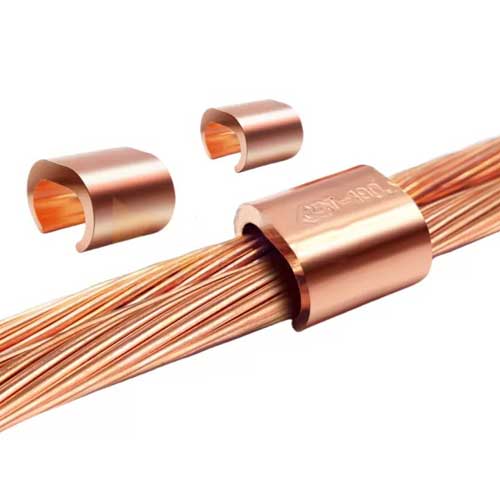

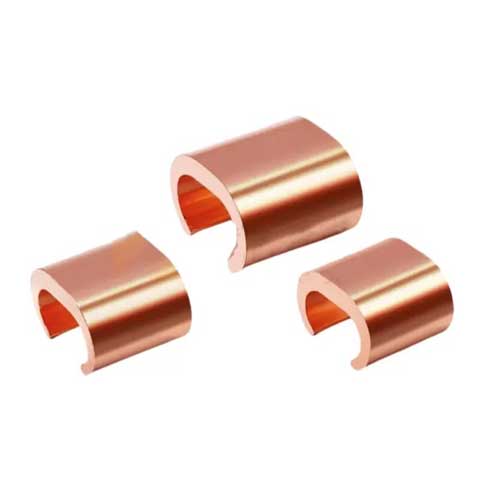

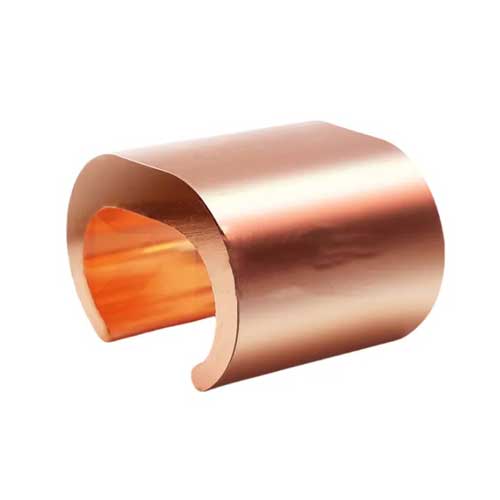

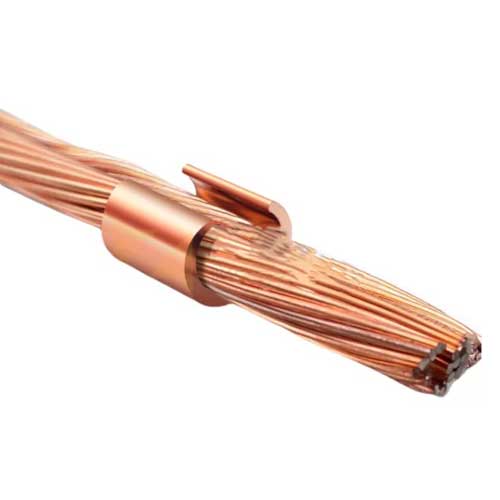

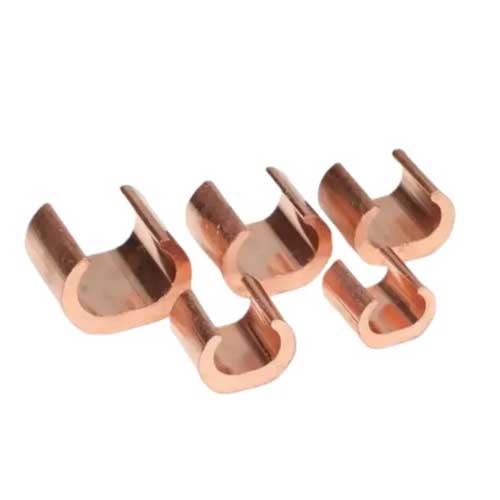

Product Overview: The C-clamp is a high-performance electrical connector made from a high-strength alloy with excellent electrical conductivity. It is designed to provide reliable and long-lasting connections in electrical systems, maintaining optimal contact pressure between the wire and the clamp even under varying environmental and load conditions. The C-clamp is elastic and tailored to accommodate different wire specifications, ensuring a stable and efficient electrical connection.
Structural Features:
- High-Strength Alloy Construction:
- Made from a high-strength alloy that offers superior electrical conductivity and durability.
- Elastic Design:
- Features an elastic structure that adapts to the expansion and contraction of the wire, maintaining consistent contact pressure.
- Wire Groove Shape:
- The wire groove or corresponding hinged wedge is specifically shaped to match different wire specifications, ensuring a secure fit.
- Corrosion and Oxidation Resistance:
- Coated with a strong electric compound grease that resists corrosion, oxidation, and moisture, enhancing the longevity and reliability of the connection.
- Constant Contact Pressure:
- Designed to provide permanent and consistent contact pressure, minimizing contact resistance and maximizing contact surface.
Installation Method:
- Simple Application:
- Easily installed by positioning the wire in the groove and securing it with the hinged wedge or specific groove shape.
- Adaptability:
- Can be used with various wire sizes and types, thanks to its flexible and adaptable design.
- Tool-Free Installation:
- Often requires no special tools for installation, simplifying the process and reducing installation time.
Applicable Environmental Conditions:
- Temperature Range:
- Suitable for temperatures ranging from -40°C to +85°C, ensuring performance in extreme conditions.
- Humidity:
- Can operate in environments with relative humidity up to 95%, providing reliability in moist conditions.
- Corrosive Environments:
- Ideal for environments with high moisture or chemical exposure, thanks to its corrosion-resistant properties.
Specifications
| Model | Cable range | Weight |
|---|---|---|
| CCT-16 | 11.5-16mm | 0.055kg |
| CCT-20 | 14~20mm | 0.01kg |
| CCT-26 | 21-26mm | 0.205kg |
| CCT-44 | 27~44mm | 0.207kg |
| CCT-60 | 45~60mm* | 0.148kg |
| CCT-76 | 61-76mm | 0.115kg |
| CCT-98 | 77~98mm | 0.207kg |
Product Advantages
- When the C-clamp is used as a wire current connection, the crimping is tight and the connection joint is a whole. After crimping, the sleeve is fully tightly covered with the wire, the current conduction distribution is uniform, the resistance is small, only the micro-ohm level, the temperature is low and the tensile force is large, and the failure rate can be reduced by more than 80%. The line has stable and good contact performance, no maintenance, reduce maintenance costs, reduce energy consumption, and save energy.
- 1. contact performance: clamp and wire contact surface is large, clamping force is large and constant, DC resistance ratio between 0.85~0.9;
- 2. overload capacity: overload capacity reaches more than 2 times the approved current;
- 3. firm performance: bolt fastening or large pressure clamp clamping fixed, reliable connection, never fall off;
- 4. thermal cycle performance: good thermal cycle performance, always in the DC resistance ratio below 1 operation;
- 5. installation: easy to install and disassemble, suitable for high-altitude work;
- 6. energy saving performance: The material is made of high-strength special materials, no electromagnetic loss, corrosion resistance, oxidation resistance.
Application Places
The C-shaped clamp can be used in electrical lightning protection grounding projects that require firm connection and non-disassembly connection, such as power grounding network and lightning protection grounding network.
